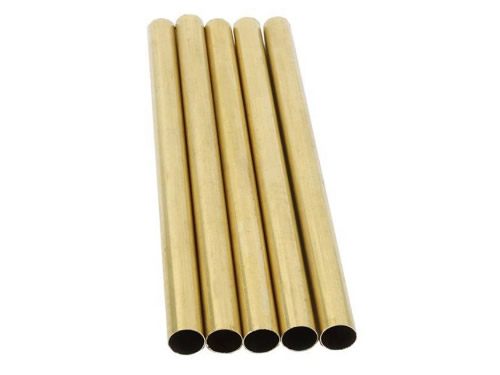

C68700 Brass Pipe CuZn20Al2

C68700 Brass Pipe CuZn20Al2

C68700 Brass Pipe CuZn20Al2

C68700, also known as aluminum brass, is a copper alloy containing copper and aluminum elements. It has excellent corrosion resistance and high thermal conductivity, so it is widely used in manufacturing parts and equipment that require high corrosion resistance and heat dissipation capabilities, such as seawater coolers and heat exchangers.
Standard: ASTM, GB, DIN, BE, EN, JIS
Categories: Copper, Copper Pipe/TubeOD: Φ2mm~Φ250mm (Common Sizes: Φ6mm~Φ54mm)Wall thickness: 0.2mm~20mmLength: 1M~6M or customizedInch:

More choices

DetailsFAQ'S
Product nameC68700 Brass Pipe CuZn20Al2
StandardGB,  ASTM, CDA, BS, DIN, JIS
Material

C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930，

C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,

C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,

C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,

C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200，

T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,etc

Common Brass: H96, H90, H85, H80, H70, H68A, H68, H65, H63, H62, H60 etc

Lead Brass: HPb63-3, HPb63-0.1, HPb60-2, HPb59-3, HPb59-2, HPb59-1, HPb58-2.5

Length1m~12m, or as required
Wall Thickness0.2mm~120mm
Outside Diameter2mm~914mm
Hardness1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard.
ShapeRound, square, rectangular,etc
SurfacePolished,bright,oiled,hair line, brush, mirror, or customized
Delivery Timewithin 7 days
MOQ1 ton
PackingStandard export seaworthy package or as required.
AdvantageCE,ISO 9001, SGS, etc


National Copper Grades And Standards Comparison Table


CNGEREURINTUSAJPN
GBDINENISOUNSJIS
TU2OF-Cu2.0040Cu-OFECW009ACu-OFC10100CJ0ll
-SE-Cu2.0070Cu-HCPCW021A•Cl0300•
-SE-Cu2.0070Cu-PHCCW020A-Cl0300-
T2E-Cu582.0065Cu-ETPCW004ACu-ETPC11000CH00
TP2SF-Cu2.0090Cu-DHPCW024ACu-DHPCl2200Cl220
•SF-Cu2.0090Cu-DHPCW024ACu-DHPCl2200Cl220
-SF-Cu2.0090Cu-DHPCW024ACu-DLPCl2200Cl220
TP1SW-Cu2.0076Cu-DLPCW023ACu-DLPCl2000C1201
H96CuZn52.0220CuZn5CE500LCuZn5C21000C2100
H90CuZn102.0230CuZnlOCW501LCuZnl0C22000C2200
H85CuZn152.0240CuZnl5CW502LCuZn15C23000C2300
H80CuZn202.0250CuZn20CW503LCuZn20C24000C2400
H70CuZn302.0265CuZn30CW505LCuZn30C26000C2600
H68CuZn332.0280CuZn33CW506LCuZn35C26800C2680
H65CuZn362.0335CuZn36CW507LCuZn35C27000C2700
H63CuZn372.0321CuZn37CW508LCuZn37C27200C2720
HPb63-3CuZn36Pb1.52.0331CuZn35Pb1CW600NCuZn35Pb1C34000C3501
HPb63-3CuZn36Pb1.52.0331CuZn35Pb2CW60INCuZn34Pb2C34200-
H62CuZn402.0360CuZn40CW509NCuZn40C28000C3712
H60CuZn38Pb1.52.0371CuZn38Pb2CW608NCuZn37Pb2C35000-
HPb63-3CuZn36Pb32.0375CuZn36Pb3CW603NCuZn36Pb3C36000C3601
HPb59-lCuZn39Pb22.0380CuZn39Pb2CW6I2NCuZn38Pb2C37700C3771
HPb58-2.5CuZn39Pb32.0401CuZn39Pb3CW614NCuZn39Pb3C38500C3603
-CuZn40Pb22.0402CuZn40Pb2CW6I7NCuZn40Pb2C38000C3771
•CuZn28Sn12.0470CuZn28Sn1AsCW706RCuZn28Sn1C68800C4430
-CuZn31Si12.0490CuZn31Si1CW708RCuZn31Si1C44300-
-CuZn20A122.0460CuZn20A12AsCW702RCuZn20A12C68700C6870
QSn4-0.3CuSn42.1016CuSn4CW450KCuSn4C51100C5111
-CuSn52.1018CuSn5CW451KCuSn5C51000C5102
QSn6.5-0.lCuSn62.1020CuSn6CW452KCuSn6C51900C5191
QSn8-0.3CuSn82.1030CuSn8CW453KCuSn8C52100C5210
BZn12-24CuNi12Zn242.0730CuNil2Zn24CW403JCuNil2Zn24C75700.
BZn 12-26CuNi18Zn272.0742CuNi18Zn27CW410JCuNil8Zn27C77000C7701
BZnl8-18CuNi18Zn202.0740CuNi18Zn20CW409JCuNil8Zn20C76400C7521
-CuNi10Fe1Mn2.0872CuNi10Fe1MnCW352HCuNilOFeIMnC70600C7060
•CuNi30Mn1Fe2.8820CuNi30Mn1FcCW354HCuNBOMnlFeC71500C7150
