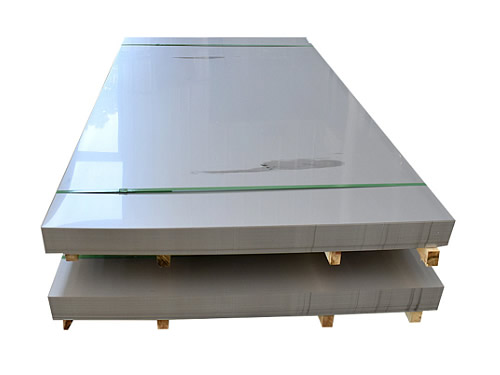

Monel 400 Alloy Plate/Sheet

Monel 400 Alloy Plate/Sheet

Monel 400 Alloy Plate/Sheet

Monel 400 is a nickel-copper alloy that is popular for high-performance applications. Monel 400 exhibits excellent acid and alkaline resistance, high strength, good ductility, and good thermal conductivity, and is hardened by cold-working. It can be used in application temperatures ranging from subzero to 1,000°F (538°C).
Standard: ASTM, GB, DIN, BE, EN, JIS
Categories: Nickel, Monel

More choices

DetailsFAQ'S
Product NameMonel 400 Alloy Plate/Sheet (UNS N04400)
TechnologyHot rolled , Cold rolled
GradeInconel 600, Inconel 601, Inconel 625, Inconel 617, Inconel 690, Inconel 718, Inconel X-750
Incoloy A-286, Incoloy 800, Incoloy 800H, Incoloy 800HT
Incoloy 825, Incoloy 901, Incoloy 925, Incoloy 926
Monel 400, Monel K-500
Hastelloy C22, Hastelloy C-276, Hastelloy B-2, Hastelloy B-3, Hastelloy X
SpecificationsASTM, ASME, UNS, JIS, EN, AFNOR
Surface2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Processing Service
Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining
Deformation processing :  Bending / Cutting / Rolling / Stamping
Delivery time10-30 days subject to the clients' requirement and quantity
Packageclients' requirement and Standard export sea-worthy packing
MOQ1 ton

Available Size Range

DimensionRange
thickness

0.2-100mm

Width1000mm, 1219mm, 1500mm, 1800mm, 2000mm, etc.
or customer's request
Length1000mm~6000mm,
or as customer's request

Chemical Analysis

 %NICuFeCMnSiS
Monel 400Min.6328-----
Max.-342.50.320.50.024
 %NiCuFeCMnSiSAlTi
Monel K500Min.6327-----2.30.35
Max.-3320.181.50.50.013.150.85

Physical Properties

DensityMelting RangeTensile StrengthYield StrengthElongation
8.83G/CM3 1300-1390℃ RM N/mm²RPO.2 N/mm²A5%
48017035

Applications

  • Feed water and steam generator tubing.

  • Brine heaters, sea water scrubbers in tanker inert gas systems.

  • Sulfuric acid and hydrofluoric acid alkylation plants.

  • Pickling bat heating coils.

  • Heat exchangers in a variety of industries.

  • Transfer piping from oil refinery crude columns.

  • Plant for the refining of uranium and isotope separation in the production of nuclear fuel.

  • Pumps and valves used in the manufacture of perchlorethylene, chlorinated plastics.

  • Monoethanolamine (MEA) reboiling tube.

  • Cladding for the upper areas of oil refinery crude columns.

  • Propeller and pump shafts.

Related Products

Monel
  1. Monel 400 Alloy Pipe/Tube
  2. Monel K500 Alloy Coil/Strip
  3. Monel K500 Alloy Pipe/Tube
  4. Monel 400 Alloy Coil/Strip
  5. Monel K500 Alloy Bar
  6. Monel K500 Alloy Plate/Sheet
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
A: We have become trade partners with more than 50 countries around the world, mainly exporting to the United States, Russia, Britain, Kuwait, Egypt, Türkiye, Jordan, India, etc.
A: Of course! As long as you contact us, we can provide free inventory samples. Customized samples take approximately 5-10 days.
A: You can contact me on WhatsApp, call me, or send us an email online form to let us know your product specifications.
A: Usually 15 tons, but adjustments will also be made based on the product or your needs, as well as the actual inventory situation.
A: The products will be delivered ASAP on the basis of the quality assurance.Generally,samples order's delivery time is 5-10 days.Container orders are about 15-20 days.
A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other metal materials companies.
