Product Specification and Size :
GB/T 5237, ASTM B221 and EN 755 as reference
| Alloy | Temper |
| 6xxx: 6063 | T5 |
Alloy Designation (For Reference)
Comparison of Alloy Designations for Aluminum Products
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 6xxx Series | 6063 | 6063 | EN AW-6063 |
Temper Designation (For Reference)
| Temper | Definition |
| T5 | Cooled from an elevated temperature shaping process and then artificially aged |
Available Size Range
| Dimension | Range |
| Circumscribing Circle (A) | 20~350mm |
| Wall Thickness (B) | >0.8 mm |
| Length | 1,000~6,000mm |

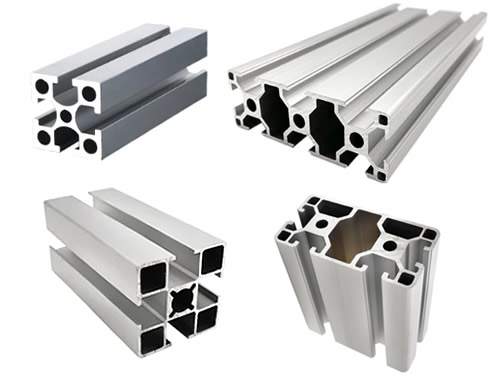

- Production Process: Extruded
- Form & Image: Standard Form, or as per confirmed drawings
- Surface Finish: Mill Finish as default, Anodized, Electrophoretic Coating, Powder Coating, PVDF Coating (Paint, Film, Thickness, Color to be clarified when ordering)
- Surface Protection: PVC film, Plastics bag packaging, Paper interleaved
Application
Aluminum alloy architectural profiles are commonly used in decoration, such as entrances, elevator doors, ceiling and window spandrels.
| Type | Application |
| Construction | Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc. |
| Transportation | Automobile parts, bus bodies, aviation, shipping and air-cargo containers, etc. |
| Electronic Appliance | Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc. |
| Consumer Goods | Parasols and umbrellas, cooking utensils, sports equipment, etc. |
| Other | Military usage, color coated aluminum sheet |
Chemical Composition (For Reference)
Chemical Composition conforms to Chinese, American and European standard specification
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
| 6060 | 0.30~0.60 | 0.10~0.30 | 0.10 | 0.10 | 0.35~0.60 | 0.05 | 0.15 | 0.10 | 0.05 | 0.15 | remainder |
| 6061 | 0.40~0.80 | 0.70 | 0.15~0.4 | 0.15 | 0.80~1.20 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 6063 | 0.20~0.60 | 0.35 | 0.10 | 0.10 | 0.45~0.90 | 0.10 | 0.10 | 0.10 | 0.05 | 0.15 | remainder |
| 6463 | 0.20~0.60 | 0.15 | 0.20 | 0.05 | 0.45~0.90 | - | 0.05 | - | 0.05 | 0.15 | remainder |
