Product Specification and Size :
Standard Specification:
By agreement and by confirmed drawings
GB/T 6892, ASTM B221 and EN 755 as reference.
| Alloy | Temper |
| 6xxx: 6060, 6061, 6063 | T4, T5, T6, T66 |
Alloy Designation (For Reference)
Comparison of Alloy Designations for Aluminum Products
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 6xxx Series | 6060 | 6060 | EN AW-6060 |
| 6061 | 6061 | EN AW-6061 | |
| 6063 | 6063 | EN AW-6063 |
Temper Designation (For Reference)
| Temper | Definition |
| T4 | Solution heat-treated and naturally aged |
| T5 | Cooled from an elevated temperature shaping process and then artificially aged |
| T6 | Solution heat-treated and then artificially aged |
Available Size Range
| Dimension | Range |
| Circumscribing Circle (theoretical) | < 400 mm |
| Length | 1,000~6,000 mm |
Production Process: Extruded
| Temper | Definition |
| T4 | Solution heat-treated and naturally aged |
| T5 | Cooled from an elevated temperature shaping process and then artificially aged |
| T6 | Solution heat-treated and then artificially aged |
| T66 | Solution heat-treated and then artificially aged - mechanical property level higher than T6 achieved through special control of the process (6000 series alloys) |
- Form: Special shapes customized by users
- Surface Finish: Mill Finish, Anodized, Power Coated
Application

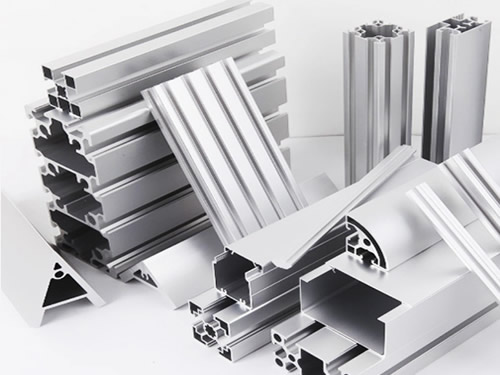

Aluminum alloy customized profiles are shaped through the opening in the die. They can be framed with holes and other features to meet manufacturing needs.
| Type | Application |
| Construction | Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc. |
| Transportation | Automobile parts, bus bodies, aviation, shipping and air-cargo containers, etc. |
| Electronic Appliance | Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc. |
| Consumer Goods | Parasols and umbrellas, cooking utensils, sports equipment, etc. |
| Other | Military usage, color coated aluminum sheet |
Chemical Composition (For Reference)
Chemical Composition conforms to Chinese, American and European standard specification
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others: Each | Others: Total | Al: Min. |
| 6060 | 0.30~0.60 | 0.10~0.30 | 0.10 | 0.10 | 0.35~0.60 | 0.05 | 0.15 | 0.10 | 0.05 | 0.15 | remainder |
| 6061 | 0.40~0.80 | 0.70 | 0.15~0.40 | 0.15 | 0.80~1.20 | 0.04~0.35 | 0.25 | 0.15 | 0.05 | 0.15 | remainder |
| 6063 | 0.20~0.60 | 0.35 | 0.10 | 0.10 | 0.45~0.90 | 0.10 | 0.10 | 0.10 | 0.05 | 0.15 | remainder |
| 6463 | 0.20~0.60 | 0.15 | 0.20 | 0.05 | 0.45~0.90 | - | 0.05 | - | 0.05 | 0.15 | remainder |
